Automatic High Speed Slitting Rewinding Machine (Model HSR370-MSATER Label Slitter and Rewinder)

Automatic High Speed Slitting Rewinding Machine

This automatic slitting and rewinding machine comes with a servo drive and control system. The taper tension control is applied to the winding system, ensuring precision web tension control. Designed with a web guide system and turret rewinding unit, the slitter rewinder is suitable for rewinding various inner cores.

Inquiry
Technical Specifications
Model HSR370-MASTER
Speed 350mm/min
Max. Web Width 370mm
Max. Unwind Dia. 800mm
Max. Rewind Dia. (Top Rewind Shaft) 450mm
Max. Rewind Dia. (Bottom Rewind Shaft) 800mm
Razor Knife Optional
Min. Slitting Width 20mm
Power 9kW
Dimensions (L*W*H) 2200*1350*1350mm
Weight 1300kg
Product Show

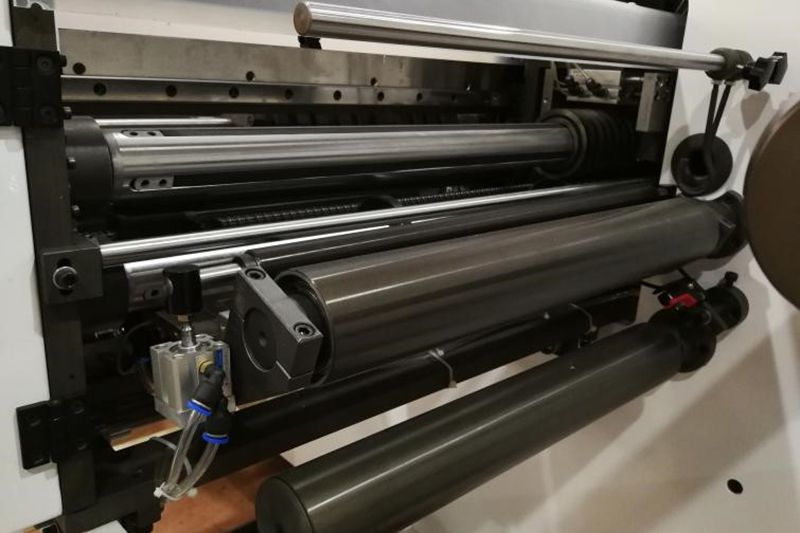

    2. Automatic slitting unit The slitting station is designed with slitting blades, which can move automatically. In addition, the slitting width can be easily set on the HMI touch panel.
    2. Web Guide System The web guide system from a well-known international brand provides high precision.
    2. Servo Drive Servo motor from China’s top brand is used.

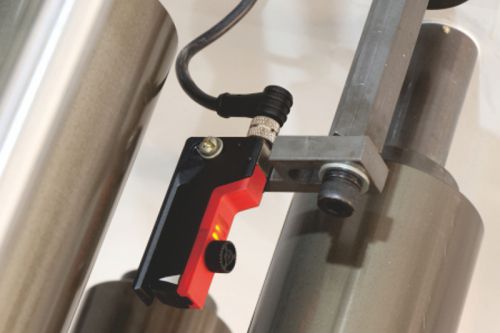

    2. Counter sensor The label counting sensor is from an internationally well-known brand, allowing for accurate counting of label numbers.

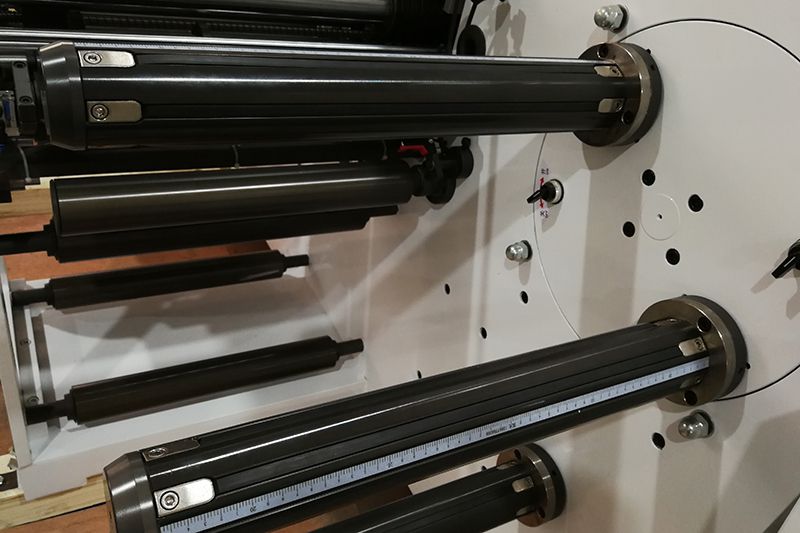

    2. Turret rewinding unit The turret rewinding unit is designed with air shafts of various rewinding cores. The expanding air shaft features on/off switch.
