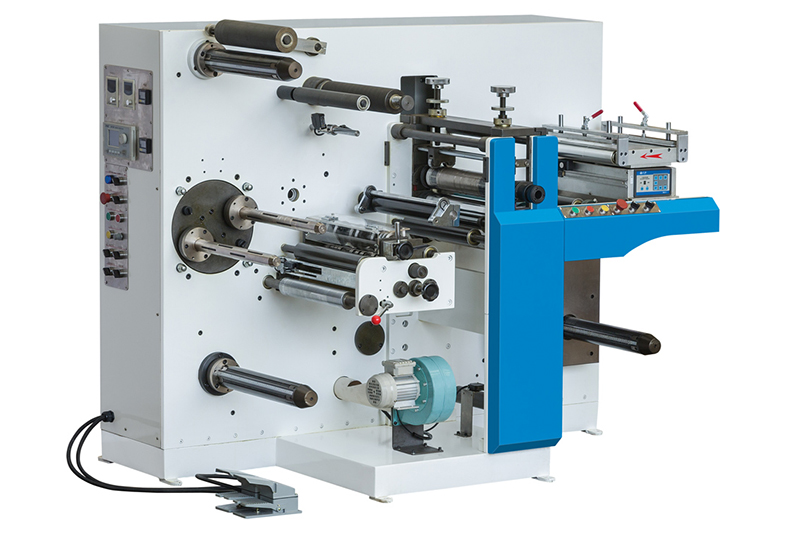

Rotary Die Cutting Machine (Model YMQA-320 Rotary Die Cutter for Label Production)

Inquiry

YMQA-320 rotary die cutting machine is specially designed for die cutting and slitting blank labels. Engineered for precision and efficiency, this label die cutting machine integrates a web guiding system, automatic meter counting, piece counting, and turret rewinding, ensuring a smooth and easy operation, with a high-efficiency label production process.

Technical Highlights

Max. Unwinding Diameter	600mm
Die Cutting Speed	150m/min
Slitting Speed	200m/min
Max. Roll Width	320mm

• Equipped with an unwind shaft with a limiting baffle to easily fix material in place. Adopting the frame-style web guide system ensures accurate alignment during material transfer with minimal effort and high precision.

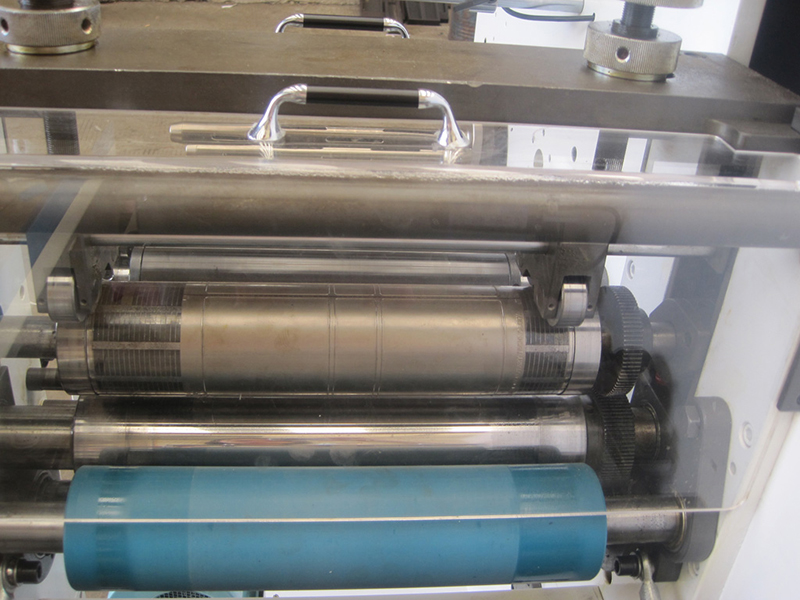

• The pressure-adjusting screw design allows pressure fine-tuning without needing to dismantle the die cutter machine’s parts.
• The upper rewinder with turret-style design significantly improves roll change efficiency.
• The rotary die cutter’s transmission system adopts a synchronous belt drive, effectively reducing noise during operation.
• The adoption of magnetic powder brake/clutch tension control for unwind, rewind, and waste collection process ensures smooth and reliable operation.
• Built with automatic consistent tension control for unwinding; and taper tension control at rewinding for various materials.

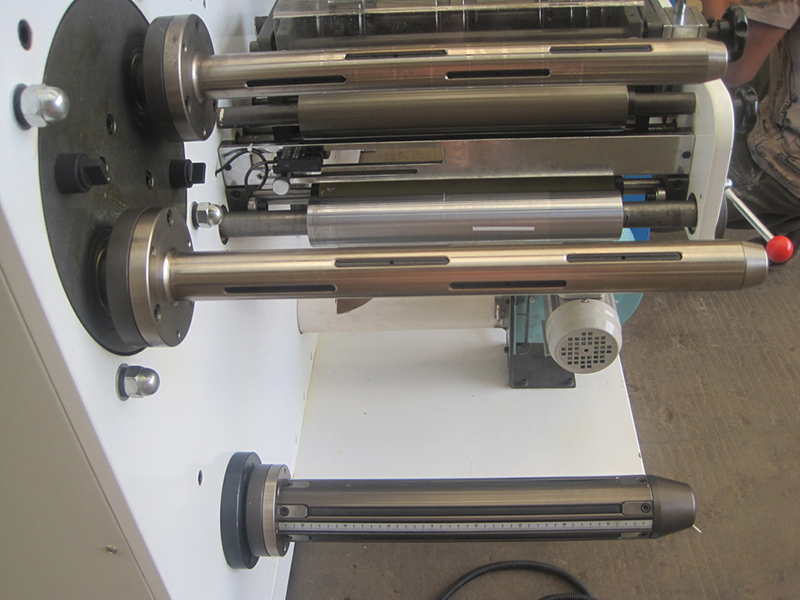

• Air shaft system with automatic air expansion to firmly hold the core of a roll during unwinding, rewinding, and waste collection for easier and efficient operation.
• The rotary die cutting machine is equipped with a smart control system, which includes automatic counting, length presetting, ultrasonic sensor web guiding, and automatic stop for precise workflow control.

Applications

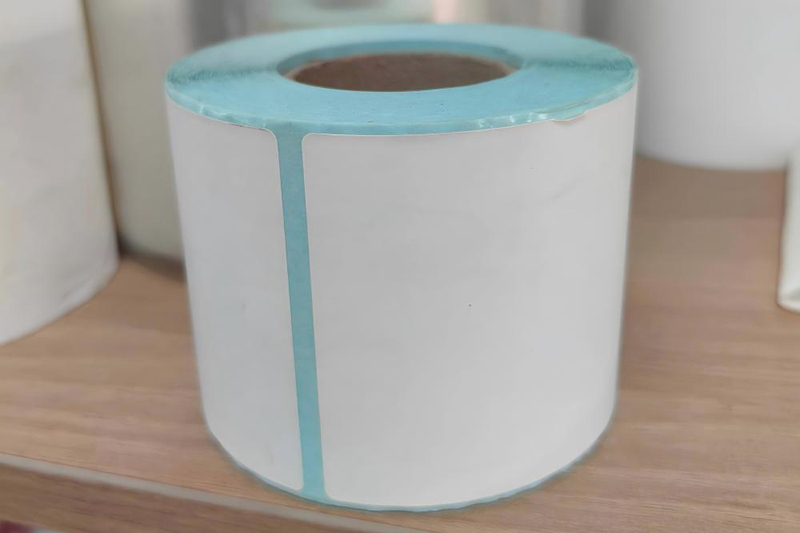

YMQA-320 rotary die cutting machine is ideal for the precise die cutting and slitting of blank label rolls, ensuring high efficiency and stable operation in adhesive label production.
