Die Cutting and Finishing Machine (Model DCFM-370 PRO Die Cutter and Finishing)

Die Cutting and Finishing Machine

The die cutting and finishing machine is designed with full rotary or intermittent flexo printing, die cutting, cold stamping, lamination, slitting, sheeting, etc., ensuring various jobs can be done in one process. This greatly enhances production efficiency.

Inquiry
Technical Specifications
Model DCFM-370 PRO
Max. Running Speed 120times/min (full rotary mode), 300times/min (semi-rotary mode)
Max. Web Width 370mm
Print Repeat 200-450mm
Reprinting Precision ± 0.15mm
Die Cut Repeat 50-444.5mm
Die Cutting Precision ± 0.15mm
Max. Unwinding Dia. 800mm
Max. Rewind Dia. (Top Rewind Shaft) 600mm
Max. Rewind Dia. (Bottom Rewind Shaft) 800mm
Rewind Inner Core Size 1inch-6inch (standard in 3inch)
Material Thickness 20-300um
Air Source 0.8Mpa
Product Show
    2. Waste Matrix Removal System The waste matrix removal system features a sliding rewinding shaft, making waste rewinding convenient without adjusting the distance between waste rewinder and the stripping point. Designed with an independent motor drive, rewind shaft speed varies with machine speed.
    2. Intermittent / Rotary Flexo Printing Unit Designed with a dual servo drive system, the printing unit features easy operation. It’s unnecessary to change print cylinder due to print length change, print cylinder positioning, and pre-registration. The water cooled UV dryer is adopted, and the IR dryer can be optional.
    2. Die Cutting Unit Driven by servo motor, the die cutting system comes with double servo motor traction, independent tracking system, intermittent and rotary interchangeable working mode.

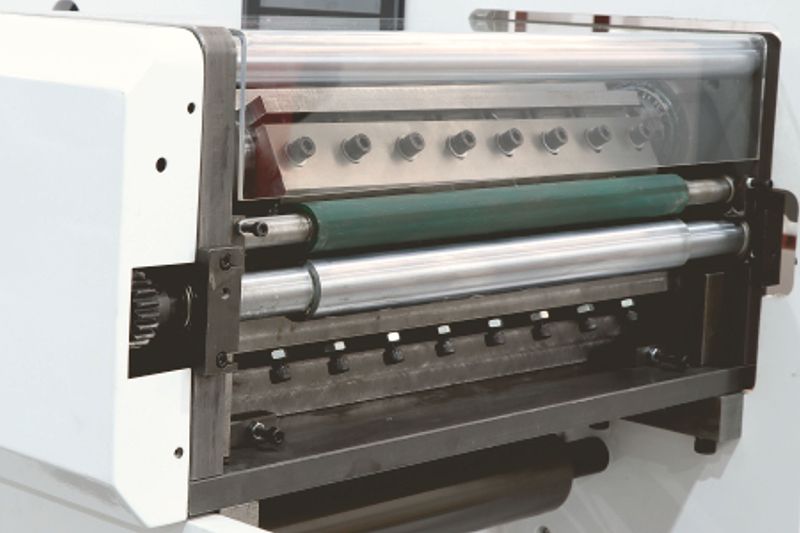

    2. Sheeter Unit It features dual servo motor drive, independent tracking system, digital control of cutting length, etc.
    2. Touch Screen The control panel is movable, and is designed with touch screen for easy operation.
    2. Web Guide System The web guide system from a well-known international brand provides high precision.
    2. Pressure Measurement System Two pressure gauges are designed on the top of two sides of the magnetic cylinder to ensure the pressure keeps constant during die cutting job. This also provides great convenience on checking the pressure data during running.
