Automatic High Speed Slitting Rewinding Machine (Model HSR-370 Label Slitter and Rewinder)
The high-speed slitting and rewinding machine features a servo drive system, taper control system, internationally well-known web guide system, and turret rewinding unit. For its quality and reliability, the slitter rewinder is widely used throughout the converting industry.
Technical Specifications
| Model | HSR-370 |
| Speed | 350m/min |
| Max. Web Width | 370mm |
| Max. Unwind Dia. | 800mm |
| Max. Unwind Dia. (Top Unwind Shaft) | 450mm |
| Max. Rewind Dia. (Bottom Rewind Shaft) | 700mm |
| Razor Knife | optional |
| Circular Knife | 6 sets |
| Precision | ±0.1mm |
| Voltage | 380V, 50Hz |
| Power | 9kW |
| Dimensions(L*W*H) | 2200*1350*1350mm |
| Weight | 1300kg |
Product Show
-
-

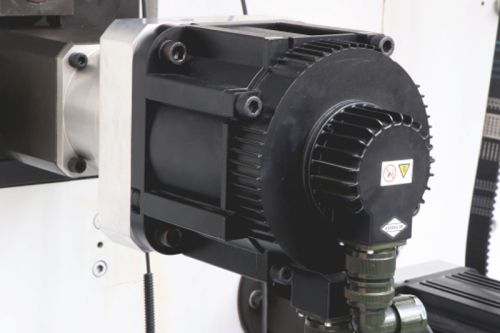

- Servo Drive Servo motor from China’s top brand is used.
-
-
-
- Slitting Unit It comes with an auto shaft locking system, and is available with razor blades or circular knives.
-
-
-
- Counter Sensor The label counting sensor is from an internationally well-known brand, allowing for accurate counting of label numbers.
-
-
-
- Turret Rewinding Unit The turret rewinding unit is designed with air shafts of various rewinding cores. The expanding air shaft features on/off switch.
-
-
-
- Web Guide System The web guide system from a well-known international brand provides high precision.
-
Optional Configurations
- Web inspection stroboscope
- Pressure roller
- Differential rewind shaft
- Shear knife for slitting
- Unwind/rewind supporting arms
